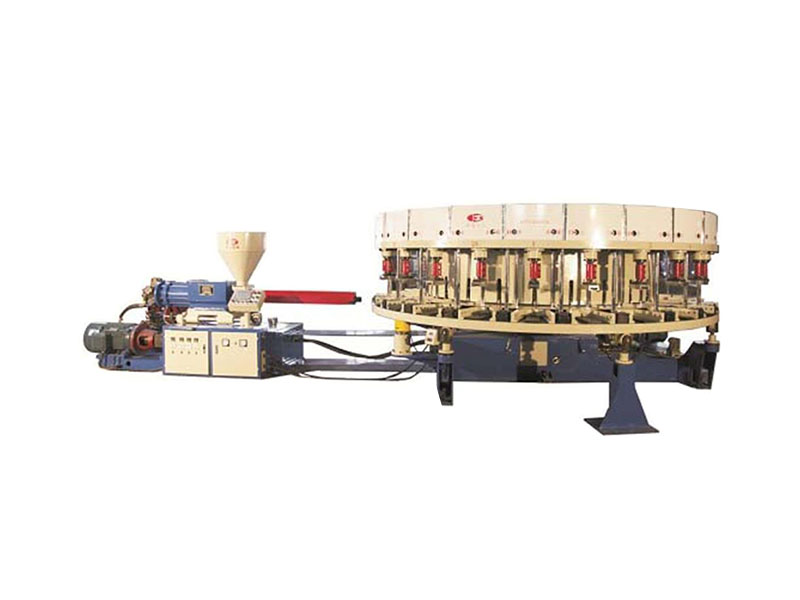

Single Color Plastic Injection Moulding Machine/Shoe Making Machine.Injection Molding Machine
Structure characteristics:
1. PLC controlled,pre plasticized by hydraulic motor,driven by full hydraulic pressure,and cycled automatically.
2. High plastifying capacity,the plastifying temperature can be controlled automatically by preselection.
3. It adopts 24 points measuring and the injection volume can be chosen according to the requirements of the moulds at each working position.
4. The function of empty mould selection has been provided.
5. Parallel mould plate closing mechanism is adopted,which linked with a toggle system operated by single cylinder.
6. The machine is equipped with two time pressure injection system and the cramp pressing and mould closing order selecting function.
7. The round table indexes smoothly and it's movement can easily be adjusted.
8. The round table rotation,plasticizing and oil supply for the injection are controlled independently.
9. There are many working positions,the time for setting is longenough,andguarantees the setting quality of shoe soles.
10. Electing servo energy conservation system to save about 30% energy.

We have the experience to export in the past 20 years. We supply various shoe making machines and materials in China and abroad. The future competition for footwear industry will be the way of making shoes, means the human wisdom and the technology of making shoes, the very high efficiency and high quality shoes. We our team will supply the complete project of high efficiency way of working, begin from the cutting section to the packing of making shoes. The most high-tech equipments and the advanced material home and abroad will help to realize the standard, mechanical, intelligent and high efficiency way of working. We will spread Chinese efficiency way of making shoes around the world as for our experience. Thanks for the last 30 years of shoes industry develpment in China, at our witness, Shoe industry moved to South east of Asian countries: Vietnam, Gambodia, Bangladesh, India, Indonesia is blooming, The south American countries and the widely African countries are growing too. Hand in hand with you for a bright shoe industry future! All our efforts is only to serve better for the production of shoes!
